Tengo Equipment

The tengo equipment used throughout the tengo networks:

AMPS

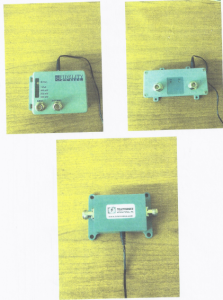

Indoor Amps:

Indoor Amps

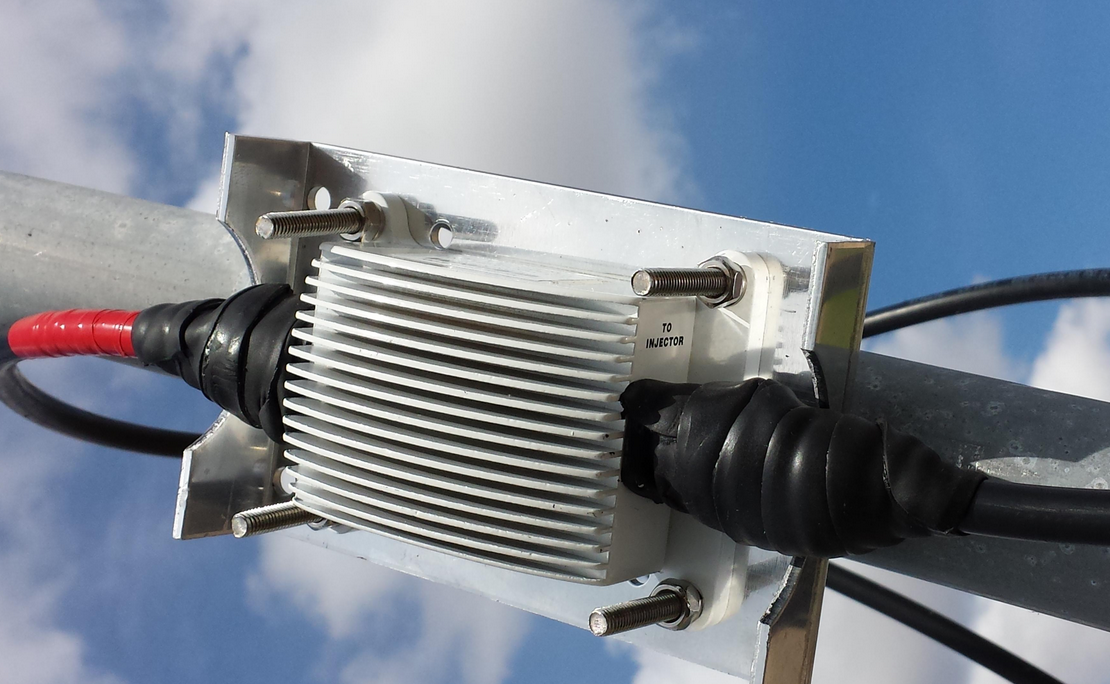

Outdoor AMPS:

These Amps are very similar to indoor AMPS, the main difference is you can see there are fins like on a computer heat-sink to help cool the unit, the cables are also sealed as well as possible. These AMPS are located outside normally mounted on the same pole or tripod the antenna is attached to.

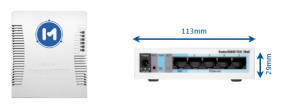

i2

i2_datasheet

This is the data sheet for the Microtik router board. There are a few versions of i2’s I will update this as the information becomes available.

e2

e2_datasheet

This is the series 8 hardware.

e25

e25_datasheet

This is the series 8 hardware.

e29

e29_datasheet

This is the series 8 hardware.

This page will continue to be updated as more information becomes available to us.

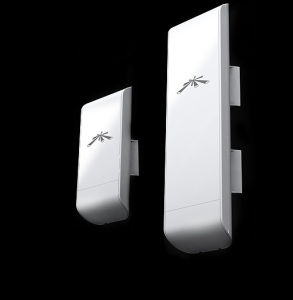

Nano Stations/Bridges

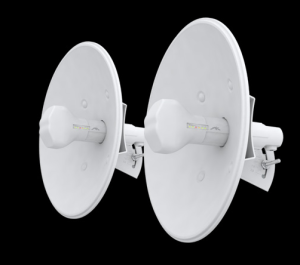

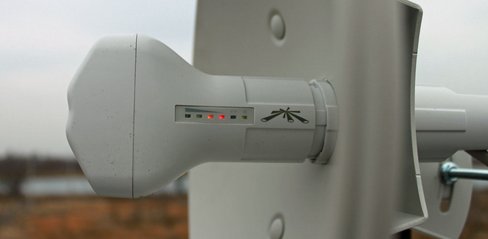

Nano Bridge:

These units use point to point directional antenna’s as such they are rarely used for guest connections but are frequently used as node to node backhauls as a cheap solution to long distance wireless communications.

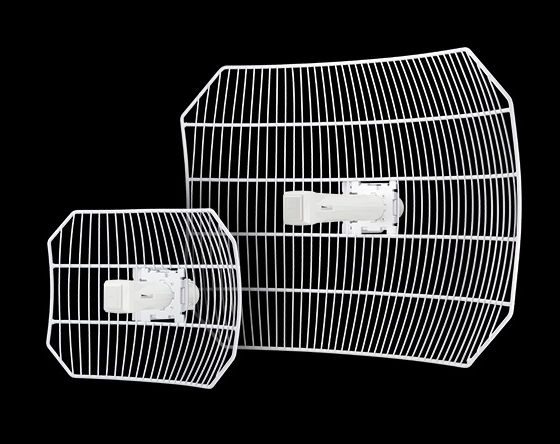

Air Grid

This piece of equipment are not frequently used however at times are used in area’s that experience very high winds or high gusts in replacement for Nano Bridges to prevent the Dish’s from being moved off target by high winds. They are used as backhauls the same way Nano Bridges are.
